Jewelry Pins Guide: Types, Uses, and How to Choose

Jewelry pins used in beadwork are straight metal pin-style findings that carry beads or other suitable components and provide a way to incorporate them into a larger jewelry design. They are not one standardized type of finding. The construction at the end of the pin changes what the component does, with head pins and eye pins being two of the most common examples covered in this guide.

The distinction matters when selecting pins for a project. A head pin begins with a retaining feature at one end, while an eye pin begins with an existing connection loop. Beyond that difference, practical selection depends on shaft length, thickness, bead-hole dimensions, and how much straight metal needs to remain after the beads have been added.

What Are Jewelry Pins?

Jewelry pins are findings built around a straight metal shaft with a functional construction at one end. Compatible beads or other suitable elements are threaded onto the shaft from its open end. Depending on the type of pin and the design, the resulting beaded section can become a drop, dangle, link, earring element, pendant detail, or another connected part of a jewelry piece.

The term in this context does not refer to every jewelry component that happens to contain the word “pin.” Brooch pins, safety pins, locking pin backs, earring posts, stick pins, and similar findings have different constructions and purposes. Here, the focus is on bead-carrying pin findings, particularly head pins and eye pins.

Jewelry pins can vary in material, shaft thickness, length, and working characteristics. These differences affect how a pin fits the intended beads and how much metal remains available for forming the final connection, so the individual product dimensions are more useful than assuming all pins of the same general type will behave alike.

What Are Head Pins?

A head pin consists of a long straight shaft with a free end on one side and a retaining feature on the other. That retaining end can take different forms depending on the product. It may be flat, rounded, ball-shaped, decorative, or constructed in another way that provides an appropriate stop for the components placed on the pin.

Beads are threaded onto the shaft from the free end. At the opposite end, the head or stopper prevents a compatible bead from simply sliding off. The physical arrangement is straightforward: the retaining feature sits at the bottom of the beaded section, the bead occupies part of the straight shaft, and unused shaft remains above it.

The size of the retaining feature matters because a bead may fit over the shaft but still have an opening large enough to pass over a very small head. Shaft-to-hole and head-to-hole compatibility therefore need to be checked separately. After the beads are added, enough straight shaft must also remain to form the intended connection at the open end. The amount required varies with the pin, connection, technique, and tools.

What Are Eye Pins?

An eye pin also has a long straight shaft and one free end, but the opposite end is already formed into an eye or loop. That loop is not a solid retaining head. It provides an existing connection point that can interact with another suitable component in the jewelry design.

Compatible beads are placed onto the straight shaft from the open end. The pre-formed eye remains at the opposite side of the beaded section and can provide an attachment point for another element. Where the design requires it, the remaining open end may later be formed into another connection, producing a beaded section with attachment points at both ends.

Eye dimensions are product-specific. Loop diameter, opening, shaft thickness, and overall pin length may differ even between products that appear nearly identical in enlarged photographs. The fact that a pin has a pre-formed eye therefore does not establish that the eye will work with every jump ring, connector, chain link, or other component.

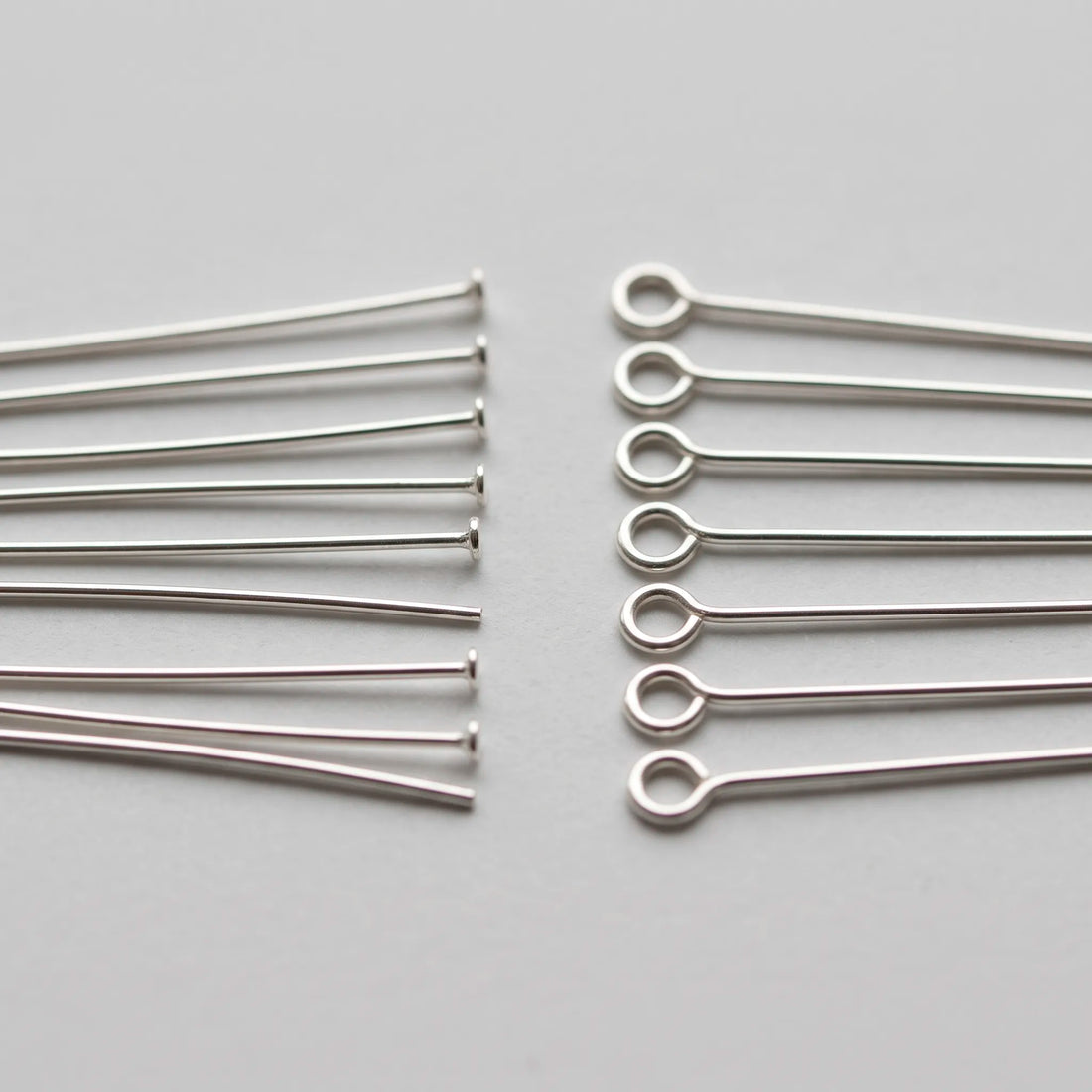

Head Pins vs Eye Pins: What’s the Difference?

Feature	Head Pins	Eye Pins
End construction	Head, stopper, ball, flat end, or another retaining feature	Pre-formed eye or loop
Primary function of existing end	Retains a compatible bead or component	Provides an existing connection point
How beads are positioned	Threaded onto the shaft from the free end	Threaded onto the shaft from the free end
Existing connection point	Not normally provided by the retaining end	Provided by the pre-formed eye
Typical resulting component	Commonly a drop or terminating beaded element	Commonly a connected or linkable beaded element
Selection considerations	Shaft dimensions, bead hole, usable length, and retaining-head dimensions	Shaft dimensions, bead hole, usable length, and eye construction

The practical distinction comes from the existing end of the pin. A head pin primarily retains the component placed on its shaft, while an eye pin already supplies an attachment point. Neither construction is inherently better; each addresses a different requirement within a jewelry assembly.

What Are Jewelry Pins Used For?

Creating Beaded Drops and Dangles

Head pins are commonly used when one end of a beaded element needs to terminate rather than provide an existing connection loop. A compatible bead or group of beads sits on the shaft above the retaining end, which prevents the lowest component from sliding off that side of the pin.

The arrangement can be visualized as retaining end → bead or decorative component → remaining straight shaft → connection formed at the open end where appropriate. The resulting element may function as a bead drop, dangle, or another decorative section attached elsewhere in the jewelry.

The retaining end still has to correspond with the bead opening. A visually substantial bead can have a large hole, and a small head may not retain it simply because the bead itself is large. Conversely, a smaller bead can have an opening that readily accommodates the pin shaft while still being appropriately retained by the head.

Creating Connected Beaded Links

Eye pins are useful when the beaded element needs an existing attachment point at one end. Their physical arrangement begins with the pre-formed eye, followed by the bead or other suitable component on the shaft, with the remaining straight section available for another connection where required.

This creates the possibility of a beaded element with connection points at both ends: existing eye → bead or component → connection at the remaining end. Such an arrangement can become part of a linked sequence or join other compatible jewelry elements without treating the eye as a retaining head.

Adding Beads to Earrings and Other Components

Pin-based bead drops and linked elements can also become part of designs that use earring findings. For example, a suitable beaded drop may connect with an earring component as one part of the overall construction. This does not mean that every head pin or eye pin is itself an earring finding; the pin creates the beaded element that can then interact with other components where appropriate.

How to Choose Jewelry Pins

Choosing a pin starts with the physical arrangement you want to build rather than with appearance alone. The pin has to accommodate the bead or other component on its shaft, leave enough usable straight metal for the intended finishing connection, and provide the appropriate type of end construction. Length, shaft thickness, bead-hole dimensions, and the head or eye all need to be evaluated separately.

Check the Pin Length

Pin length needs to accommodate both the beads or components placed on the shaft and the connection planned for the open end. A pin can be long enough to hold the selected beads but still leave too little straight metal for finishing, especially when several components share the same shaft. The required extra length varies with the intended connection and forming method.

Check the Pin Thickness

Shaft thickness determines whether a pin can physically pass through the selected bead or other component. A pin that is too thick for the available opening cannot carry that bead, regardless of how suitable its length, finish, or end construction may otherwise appear.

Thickness can also affect how the metal behaves when the remaining shaft is formed into a connection, but this should be evaluated according to the individual product. A thinner pin should not automatically be described as easier to form, nor does greater thickness by itself establish that a pin is stronger or better suited to a particular design. Material, temper, construction, and dimensions can all affect working characteristics.

Check the Bead Hole

External bead diameter does not reliably indicate bead-hole size. A large bead can have a narrow opening, while a smaller bead may have a comparatively large one. Where measurements are available, compare the pin shaft diameter directly with the bead-hole opening rather than assuming compatibility from the bead's exterior size.

Consider the Head or Eye Construction

The existing end should correspond with the role required in the design. If the pin needs to retain a bead at one end, a head pin provides a stopper or other retaining feature. If an attachment point is required at that end, an eye pin already provides a formed loop.

The dimensions of these features matter as well. On a head pin, the retaining element needs to be large enough relative to the bead opening to prevent the bead from passing over it. On an eye pin, the loop should be evaluated according to the component it is expected to connect with. Head and eye dimensions can vary between otherwise similar-looking products.

Consider the Material and Finish

Pins may be made from different metals and offered in different finishes. Where part of the pin remains visible, its color and surface appearance can be coordinated with neighboring findings or intentionally contrasted with them. Material can also influence working behavior, but specific properties should be determined from the individual product rather than assumed for all pins in a particular color or finish.

Material choice does not change the basic compatibility checks. Regardless of metal or finish, the shaft still needs to pass through the bead, sufficient usable length must remain, and the existing head or eye needs to perform the required function.

How Much Pin Length Do You Need?

Think of pin length in three parts: the total available length, the portion occupied by beads or other components, and the straight shaft that remains for finishing. A bead can fit onto a pin while still taking up so much of the shaft that there is not enough metal left to form the intended connection.

If several beads, spacers, or other components will share one pin, consider their combined length rather than checking each one separately. With a head pin, the arrangement begins above the retaining end; with an eye pin, one end already contains the connection loop.

There is no universal amount of extra shaft required for every design. The necessary working length varies with pin thickness, the size and type of connection being formed, the technique, and the tools used. For this reason, compare the complete bead arrangement with the usable pin length before choosing a size.

Choosing Jewelry Pins for Different Beads

Different beads place different demands on a pin even when their exterior dimensions appear similar. Hole diameter is the first physical limitation: the shaft must pass through the opening. After that, the number and combined length of the beads determine how much of the pin will remain available for finishing.

Bead shape can affect this relationship as well. A round bead, elongated bead, rondelle, or irregular component occupies a different amount of straight shaft relative to its visible width. When several shapes are combined on one pin, their total length along the shaft matters more than their maximum exterior diameter.

Head pins introduce an additional compatibility point at the retaining end. The head needs to stop the lowest bead from passing off the pin. A bead with a large opening may slide over a small retaining feature even when the shaft itself fits correctly. In such a case, the issue is not pin thickness but the relationship between the bead opening and the head construction.

No universal head-to-hole ratio applies to every finding. Retaining ends vary in shape and dimensions, and bead openings can also differ. A very large bead hole may require a different head construction or another suitable solution rather than assuming that any standard head pin will retain it.

For practical selection, check the bead hole against the shaft first, then consider how much pin length the complete bead arrangement will occupy. For head pins, also make sure the retaining end is large enough to stop the lowest bead from slipping off.

Common Mistakes When Choosing Jewelry Pins

• Choosing a pin by total length without accounting for the space occupied by beads can leave too little straight shaft for the intended finishing connection.
• Assuming a pin will fit based on the bead's exterior size can lead to incompatibility because bead diameter does not determine bead-hole diameter; compare the hole with the shaft instead.
• Using a head pin with a retaining end that is too small relative to the bead opening may allow the bead to pass over the head rather than remain retained.
• Confusing head pins with eye pins overlooks the functional difference between a retaining end and a pre-formed connection loop.
• Assuming every eye pin has the same loop dimensions can create compatibility problems with the component intended to attach to the existing eye.
• Assuming pins of the same overall length also have the same shaft thickness ignores an independent measurement that can affect bead-hole compatibility and working behavior.
• Judging size only from enlarged macro photographs can be misleading because small findings are often magnified substantially to show their construction and surface detail.

Checking the relevant product measurements before comparing decorative appearance helps avoid many of these problems. Length, shaft thickness, bead opening, and end construction answer different compatibility questions and should not be reduced to a single overall pin size.

Jewelry Pins and Other Jewelry Findings

Jewelry pins are part of the broader category of jewelry findings and usually function within a larger assembly. A beaded element created on a pin may connect with jump rings, earring components, chain links, charms, pendants, or other compatible findings depending on the design.

For a wider explanation of how pins, rings, clasps, connectors, and other components fit into jewelry construction, A Beginner's Guide to Jewelry Findings provides additional background on the roles of common findings.

Conclusion

Head pins and eye pins may have similar straight shafts, but their existing ends give them different roles. A head pin retains compatible beads at one end, while an eye pin begins with a connection loop that can link the beaded section to another component.

Once the required construction is clear, compare the shaft thickness with the bead hole, check that the pin provides enough usable length for the complete bead arrangement and finishing connection, and consider the dimensions of the retaining head or eye. Material and finish can then help narrow the choice among compatible options.

Frequently Asked Questions

How do head pins hold beads in place?

A head pin has a retaining feature at one end that stops a compatible bead from sliding off the pin. The head must be large enough relative to the bead opening to act as an effective stop.

What is the difference between head pins and eye pins?

A head pin has a retaining head or stopper at one end, while an eye pin has a pre-formed loop. The head helps prevent a compatible bead from sliding off that end of the pin. The eye instead provides an existing connection point for another suitable component.

What are head pins used for?

Head pins are commonly used for bead drops, dangles, and other constructions where beads need to be retained at one end of the pin. The retaining feature can vary in shape and size depending on the individual product.

What are eye pins used for?

Eye pins are useful for beaded elements that need an existing attachment point at one end. They can be incorporated into linked arrangements and other designs where the pre-formed eye connects with another compatible component.

How do I choose the right jewelry pin length?

Consider how much of the shaft will be occupied by all beads and other components together, then account for the straight metal needed for the intended finishing connection. The appropriate allowance depends on the pin dimensions, connection, technique, and tools rather than one universal measurement.

How do I know if a pin will fit through a bead?

Compare the pin's shaft thickness with the bead-hole opening. Exterior bead size does not reliably indicate hole diameter, so the relevant measurements should be checked whenever they are available.

Can jewelry pins be used for earrings?

Yes, suitable head pins and eye pins can be used to create beaded elements that become part of earring designs. The pin itself should still be selected according to bead-hole compatibility, length, thickness, and the type of connection required.

Can you make a loop at the end of a head pin?

Yes, where the pin construction and design allow it, the remaining straight shaft of a head pin can be formed into a loop after the beads are added. Enough usable shaft must remain beyond the final bead to create the intended connection.
